TS-15 Shade Structure Kit

Due to the size and weight of this product, shipping rates cannot be auto calculated through the website. Orders with posts will need to be completed over the phone with one of our helpful project managers.

Order
Color
Khaki

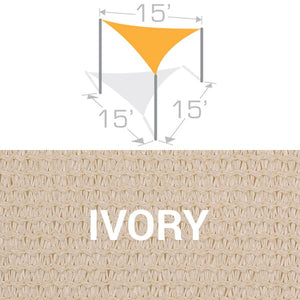

Ivory

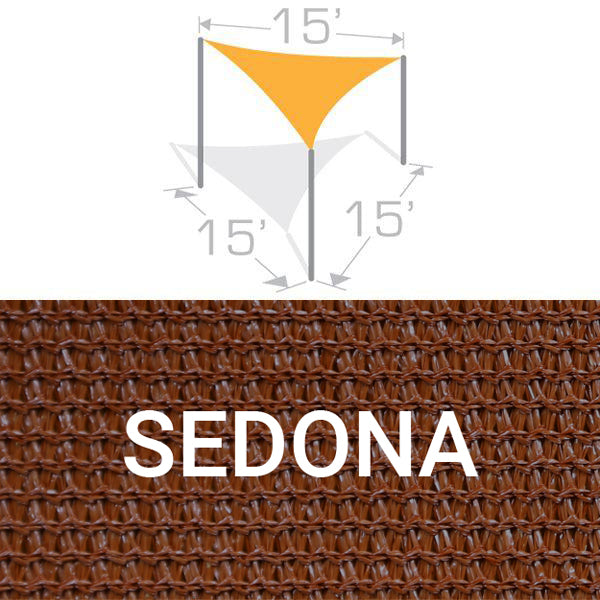

Sedona

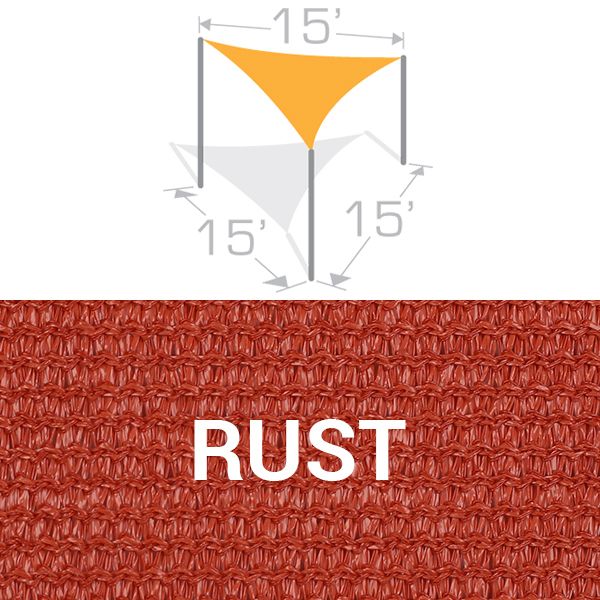

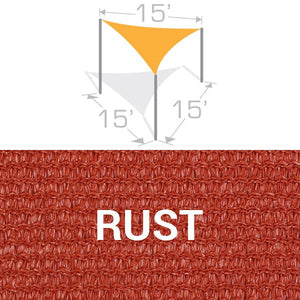

Rust
Red
Black
Charcoal
Grey

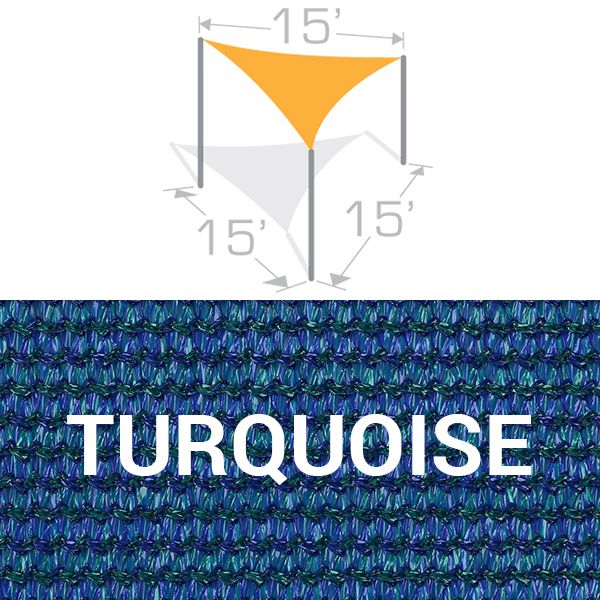

Blue
Sky
Turquoise
Forest
Sage
Yellow

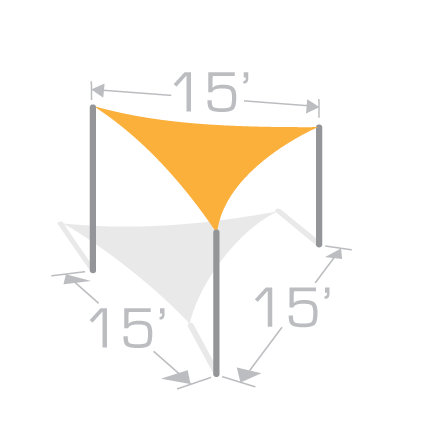

Take advantage of convenience and savings by buying a complete kit. The TS-15 Shade Structure Kit includes all the components needed to install the TS-15 shade sail.

  • (2) 7’ posts (4" x 4" x 1/4" wall steel, primed)
  • (1) 10’ post (4" x 4" x 1/4" wall steel, primed)
  • (3) Anchor Bolt Clusters with template (concrete excluded)

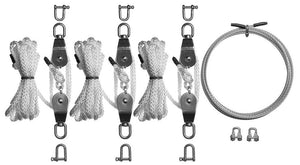

  • (3) Corner – Install Kit (includes perimeter wire rope)
  • TS-15 equilateral triangle sail in your choice of color
  • Made in the United States

The TS-15 shade sail is manufactured in the USA using UV stabilized high density polyethylene (HDPE) shade fabric and UV stabilized sewing thread. Each corner is reinforced using multiple layers of shade cloth and a stainless steel d-ring. A pocket is sewn around the entire perimeter of the sail to house a tensioning wire rope (included) which is designed to help transfer the tensile load from the corner tensioning hardware (included) to the center of the sail.

All kit components including the shade sail are made when ordered so please verify color and sizing prior to ordering because returns are only accepted under limited circumstances, otherwise all sales are final. Manufacturing turnaround time is generally between 6-8 weeks. Upon approval an expedite service is available for a turnaround time of 4-6 weeks, contact Tenshon for details.

Learn

How to Install a Structure Kit

Spacing and Structure Guides

TS-15 Spacing Guide (pdf)

TS-15 Structure Guide (pdf)

CAD Blocks

TS-15 CAD Block (dwg)

TS-15 Structure CAD Block (dwg)
